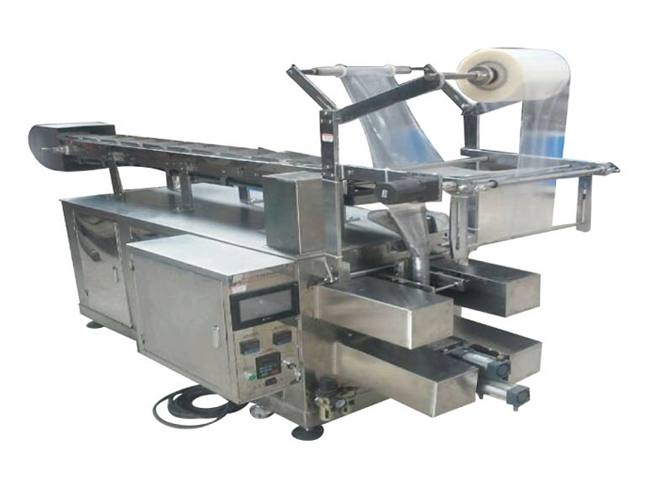

產品說明
|
膜寬（毫米）
Film width (mm)
|
50~320
|
|
制袋尺寸（毫米）長*寬
Bag size (mm) length * width
|
≤150*220
|
|
卷材直徑（毫米）
Roll diameter (mm)
|
≤400
|
|
包裝速度（袋/分鐘）
The packing speed (bags / minute)
|
50~95
|
|
電源總功率（千瓦）
Total power (kw)
|
2.5 kW 220/380 V±10% 50 Hz
|
|
機器尺寸（厘米）長*寬*高
Machine size (CM) length * width * height
|
110*80*160
|
|
整機重量（千克）
Machine weight (Kg)
|
≤250
|
|
真空泵功率（千瓦）
Vacuum pump power (kw)
|
1.55
|
適用范圍：
Scope of application:
本機適用于膨化食品、瓜子、糖果、大米等松散無粘性粉狀、粒狀物料自動包裝;還適用于化工、藥品、茶葉、種子等物料的包裝。
This machine is suitable for puffed food, candy, melon seeds, rice and other loose non adhesive powder, granular material automatic packing; also used in chemical, medicine, seed, tea packaging materials.
功能特點：
Function characteristics:
本機具有全自動真空功能，具有全自動加料、制袋、充填、封口、裁切、抽真空一次完成，并帶有自動計數；配碳帶日期打印；自動控溫，自動光電跟蹤，變頻無極調速。（按各種物料可分配料頭）
This machine has the automatic vacuum function, with automatic feeding, bag making, filling, sealing, cutting, vacuum pumping finish in one time, and with automatic counting; with the date of printing ribbon; automatic temperature control, automatic photoelectric tracking, frequency conversion stepless speed regulation. (according to a variety of materials can be assigned head)
|
