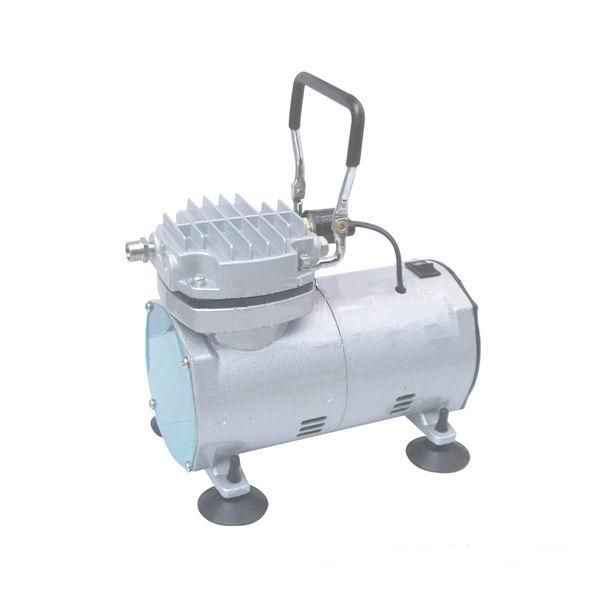

0577 65593828 0577 65595556 迷你空壓機 TP20C |
||
|
||
| 詳細信息 | ||
Item No.: TP20C
Made in: China
Type: Single Cylinder Piston Compressor
Power: 1/5 HP
Air output per min.: 23L/min
Auto stop, start at 40 psi, stop at 58 psi
Connections: with connection 1/4 BSP
Net Weight: 3.2KG
Dimension: 245*135*170mm
Packing: 47*29*52cm/6pcs
N.W/G.W: 20/22 KGS
1.This compressor is fitted with a 1/8''BSP screw thread connection for high-pressure Air hose as standard feature. To connect 1/4''BSP air hose,you will need a 1/4"-1/8" adapter.
2.Connect the appropriate pressure hose .
3.Connect the airbrush or other air tools.
4.Plug into the mains supply.
5.Press the on /0ff switch
6.The manometer shows the working pressure .you can use the pressure adjustment to set a Suitable working pressure
7.Ensure that the working area is well ventilated
|
